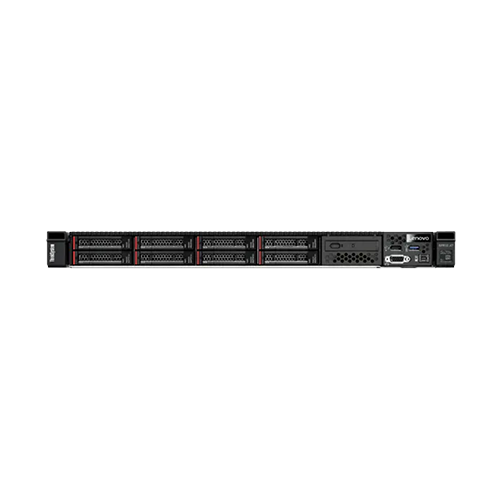

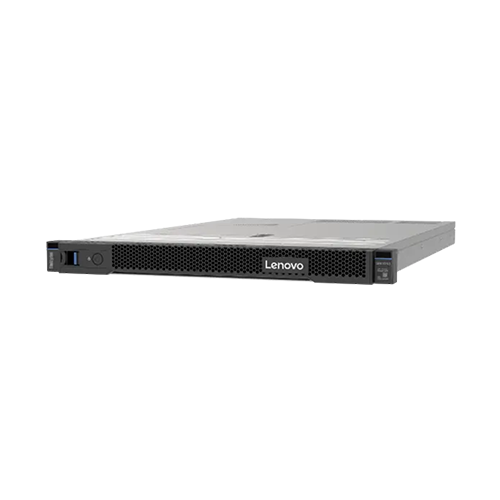

Lenovo ThinkSystem SR630 V2 Rack Server

Lenovo ThinkSystem SR630 V2 Rack Server
Form Factor/Height
1U rack server

Processor
Up to 2x 3rd generation Intel® Xeon® Scalable processors, up to 40 cores, up to 270W TDP

Drive Bays
Front and rear drive bays of up to 4x 3.5-inch + 2x 2.5-inch drives, or 12x 2.5-inch drives, or 16x EDSFF drives; Up to 12x NVMe drives supported; 2x M.2 boot drives (RAID 1); 2x 7mm boot drives in rear (RAID 1)

Memory
32x DDR4 memory slots; Maximum 4TB using 32x 128GB 3DS RDIMMs; Supports up to 16x Intel® Optane™ Persistent Memory 200 Series modules (PMem)

Expansion Slots
Up to 3x PCIe 4.0 slots, 1x OCP 3.0 slot, 1x cabled HBA/RAID adapter that doesn’t occupy a standard PCIe slot

GPUs
Up to 3x single-width 75W GPUs

Network Interface
LOM adapter installed in the OCP 3.0 slot; PCIe adapters

Ports
Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port

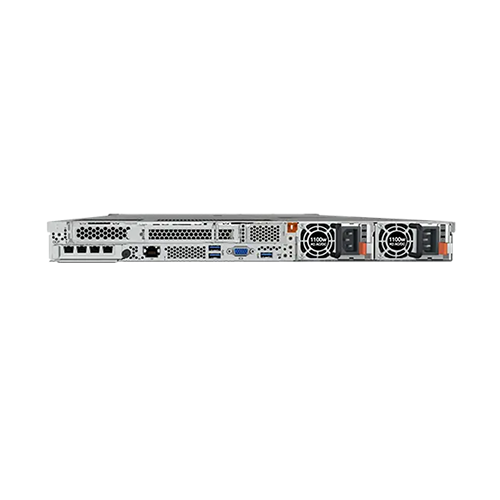

Rear: 3x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x Serial port (optional)
HBA/RAID Support
SW RAID standard; optional HW RAID with/without cache or 8/16-port SAS HBAs

Power
Dual redundant power supplies (up to 1800W Platinum)

Systems Management
Lenovo XClarity Controller

OSes Supported
Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information.

Limited Warranty
1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades
