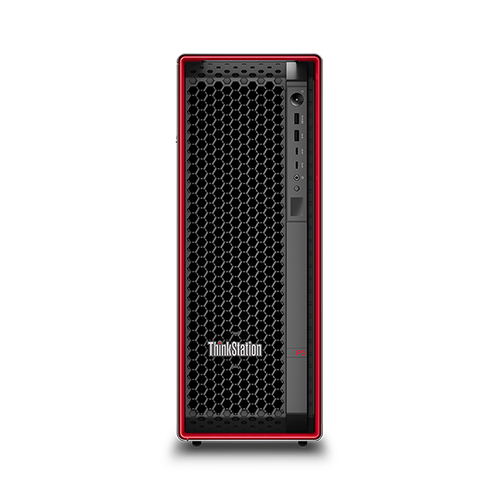

Lenovo ThinkStation P5 Tower Gen 2 (Intel)

Lenovo ThinkStation P5 Tower Gen 2 (Intel)
Processor
Up to Intel® Xeon® 678X processor with vPro® (up to 48 cores, 96 threads, 4.9GHz with Turbo Boost, 192Mb cache, 300W)

Operating System
Windows 11 Pro for Workstations
Ubuntu Linux®*
Red Hat® Enterprise Linux® (certified only)

*Select versions available via preload

Graphics
Available graphics options (multi-GPU configurations dependent on graphics card class and size):
Up to 2 x NVIDIA RTX PRO™ 6000 Max-Q Blackwell Workstation Edition (96GB GDDR7) with up to 3511 trillion operations per second (TOPS) AI performance
NVIDIA RTX PRO™ 5000 Blackwell (48GB GDDR7)
NVIDIA RTX PRO™ 4500 Blackwell (32GB GDDR7)
NVIDIA RTX PRO™ 4000 Blackwell (24GB GDDR7)
NVIDIA RTX PRO™ 2000 Blackwell (16GB GDDR7)
NVIDIA RTX™ A1000 (8GB GDDR6)
NVIDIA RTX™ A400 (4GB GDDR6)

Memory
Up to 1TB DDR5 ECC RDIMM 6400MT/s

Storage
Up to 7 drives in total:
Supports up to 4 maximum, 4TB M.2 PCIe NVMe Gen5Px4 SSD (2280)
Supports up to 3 maximum, 12TB 3.5″ Enterprise SATA HDD 7200rpm, 6Gbps
*Additional storage options available with PCIe adapter

RAID
M.2 = 0 / 1 / 10 / 5
SATA = 0 / 1 / 5

Audio
1.5W speaker
Audio by Realtek®

Power Supply Unit
1000W (92% energy-efficient)
750W (92% energy-efficient)

Connectivity
Ports / Slots
Front:
Optional: 2 x USB-A (USB 10Gbps), 1 always-on
Optional: 2 x USB-C® (USB 10Gbps)
Headphone / mic combo

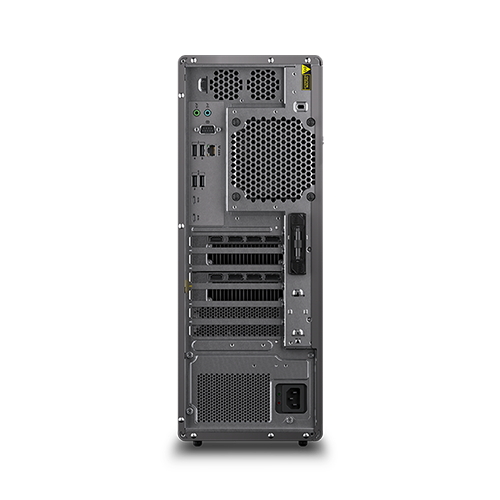

Rear:
2 x USB-A (hi-Speed USB)
2 x USB-A (USB 10Gbps)
USB-C® (USB 20Gbps)
USB-C® (USB 10Gbps)
Line in
Line out
Ethernet (RJ45)
Optional: Serial

Expansion Slots:
2 x PCIe Gen5x16
3 x PCIe Gen4x4
PCIe Gen5x8
*USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected.

Wireless
Onboard Ethernet:
Intel® Ethernet 2.6GB I226-LM, supports Wake-on-LAN
Internal WiFi Antenna

Optional Ethernet:
Realtek® RTL8125BGS PCIe 2.5G Ethernet Adapter
Intel® I210-T1 Single Port Gigabit Ethernet Adapter
Intel® I350-T4 Quad Port Gigabit Ethernet Adapter
Intel® E610-T4 Quad Port 10G Ethernet Network Adapter
Intel® E810-DA2 Dual Port 10/25G Ethernet Network Adapter

Optional WLAN:
Intel® WiFi 7* BE200 with vPro® & Bluetooth® 5.4
*WiFi 7 requires Windows 11 OS, as well as a separate WiFi 7 router and / or other networking devices to meet full WiFi 7 requirements. It’s backwards compatible with prior WiFi standards & available only in countries where WiFi 7 is supported.

Design
Volume
35L

Dimensions (H x W x D)
446mm x 165mm x 453mm / 17.55″ x 6.50″ x 17.83″
Weight
Starting at 12.5kg / 27.60lbs
Color
Black with iconic ThinkPad red components
