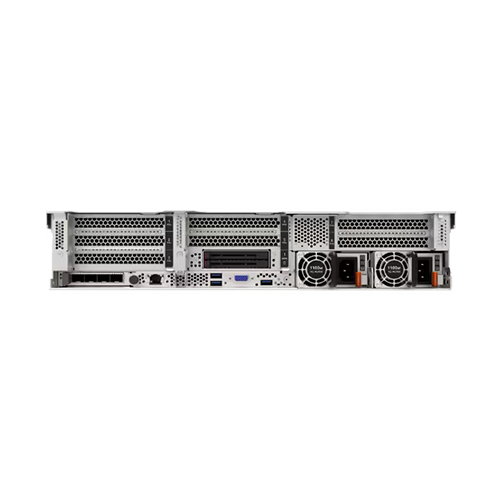

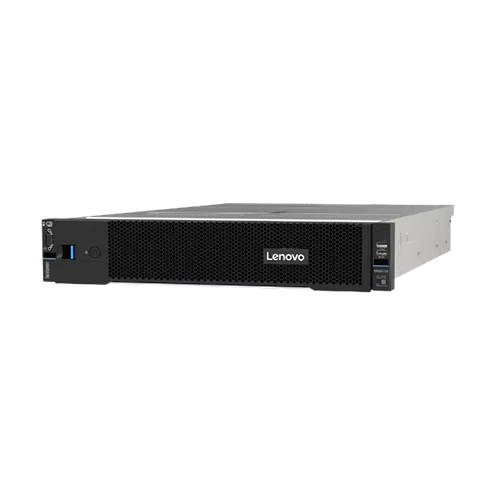

Lenovo ThinkSystem SR650 V3 Rack Server

Lenovo ThinkSystem SR650 V3 Rack Server
Form Factor/Height

2U rack server

Processors
Up to 2x 5th Gen Intel® Xeon® Scalable processors, up to 64 cores and 350W TDP

Drive Bays
Up to 20x 3.5” or 40x 2.5” drives
Up to 36x NVMe drives supported with PCIe retimer adapters

Rear: 2x 2.5”; 7mm SATA/NVMe hot-swap boot drives, support RAID
Internal 2x M.2 SATA/NVMe boot drives, support RAID
Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10)

Memory
Supports up to 32x TruDDR5 3DS/RDIMMs

Expansion Slots
Up to 12x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal HBA/RAID adapter that doesn’t occupy a standard PCIe slot

GPUs
Up to 8x single-width GPUs or 3x double-width GPUs

Network Interface
LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters

Ports
Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port (optional)

Rear: 3x USB 3.1 G1, 1x VGA, 1x 1GbE RJ-45 (management), 2nd 1GbE management port (optional in OCP slot location), 1x Serial port (optional)

HBA/RAID Support
SATA with SW RAID (0,1,5,10); Common building blocks including standard and Internal PCIe RAID/HBA adapters.

Power
Dual Redundant AC & DC (multiple wattages); Platinum & Titanium; 750W PT/TT, 1100W PT/TT, 1800W PT/TT, 2400W PT, 2600W TT and 1100W -48V DC PT

Systems Management
Lenovo XClarity Controller

Limited Warranty
1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades

Limited Warranty
1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades
